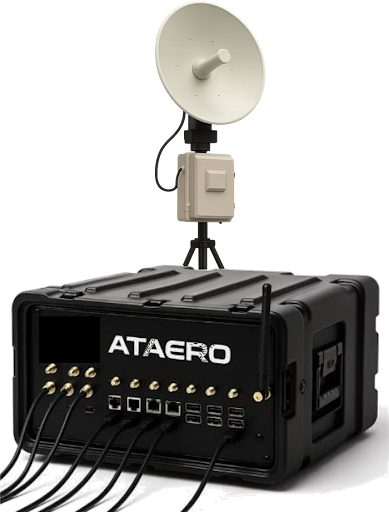

All-Domain Replication System (ADRS)
The All-Domain Replication System (ADRS) family of systems provides a cost effective live virtual constructive solution for replicating threats with precision. Built on an open architecture ADRS provides command and control (C2), threat emulation, and signal generation, all tailorable to meet customer requirements. Integrated C2 of emitters (ICCE) plugin allows for C2 of SDRS to replicate signals of interest using MACE modeling and simulation tools.
Specs
- Frequency: 2-6 GHZ (up to 12 GHz in ADRS 2.0)
- Range: 10-15 miles (up to 30 miles in ADRS 2.0)
- Point and Aim Speed: (Mach 1.0 at 2 miles and beyond
- Point and Aim using ADS-B (TIS-B and LINK-16 J2 in ADRS 2.0)
- Threat modes: SA-6 and SA-8 target tracking and acquisition (advanced signals in development available upon request)
- Beamwidth: 35 degrees horizontal and vertical
- 3 to 5 second delay from aircraft acquisition to signal transmission
- Integrates Modern Air Combat Environment (MACE) using ICCE (a proprietary technology of Atkinson Aeronautics & Technology, Inc.)
- Up to 50W output power
- Two channel operation
Features
- Emits RF Signals for IADS replication
- Reprogrammable RF signals to provide varied threat emitter options
- Portable-transport and customize in multiple environments
- Remote controllable via wi-fi, SAN, and Satcom network links
- Provides high quality, custom waveform IQ signal creation and generation
BEECN
BOXED ELECTRONIC EMITTER CAPABILITY NODE “BASE MODEL”
BEECN provides a 20 mhz to 6 ghz pulsed signal using a signal generator or software defined radio (SDR)
- Custom designed signal gives a basic emitter emulation
- Most commonly emulates a tactical communication system with voice track integration
Specs
Power
- Emits signal up to 7-10 miles
- Relative run time with batteries: 10 hrs estimated
- Operational power: 110v/220v capable
- Capable of being powered by generator – external power source supportable
Graphical User Interface (GUI)
- On/off switch
- Select pre-programmed frequencies
- View emitter status
- View power output
RF Signal Generator
Capable of providing selectable frequencies within specified band(s):
- 20 mhz to 512 mhz (VHF/UHF)
Operating Temperature
- Operational within -40 to 85 c (approximately)
Antenna
- Omni-directional
Size
- 8L x 5w (in)
Weight
- 25 lbs.
Features
- Wi-fi remote control via custom website
- Mobile, transportable, and ruggedized (ip 54) with custom case
- Battery powered with plugin option (10-hour run-time)
- Mace-integrated and stand-alone options available
- US Federal Communication Commission (FCC) & EU Spectrum certifications in progress
